The Micro-R-Press and the long way to get there.

 Some month agao, Bill Ritchie asked me about laser-cutting from 3 mm plywood, to make a print-press.

He sent me the illustrator files of his "Mini-Rembrandt-Press" (old name = "WeeWoody Rembrandt-Press"). I translated some messures from inch into cm, add a handweel and start cutting. It needs some hours, but afeter this, I starded with the assembly, but failed partially. The result, I called "Qusimodo-Press", cause it became crooked, but ist works, 'cause the rollers are still parallel...

Now it is so, that the print format is "ATC"-size. The size of (Artists) Trading Cards.

But the smallest size, I'm working with is 4 x cm.

So I've had an idea:

Press shink to 55% of the Original.


Ok, this is only an model, to find out the right design, but it is for 4 x 4 cm-prints on 5 x5 cm paper!

So I took on the challenge of constructing all parts, also the rollers of the press, from 3 mm plywood.

Laser cutten plywood and the drawing of that plate.


Next step was to realise a working-model of the Micro"R"Press, as I called it.

And it works, I could assambly the prototype of a Micro"R"Press.

The Micro"R"Press with its gear(s).

I prefer a gear drive version, like the first "WeeWoody Rewmbradt Press". This means fixed rollers, but better power transmission.

And so I started to test differend printing-plates:

Different plates, I used.

Then I've had the idea to print a booklet in 5 x 5 cm. That need printing-plates fora paper size of 5 x 10 cm, or bigger. So I made a "long-printing-bed":

Long-printing-bed wit print and cliche.



The finished booklet, 5 x 5 cm.

But then, the press blocked... the handweel didn't go forward, or back...SHOCK.

Early end of a great idea?

I thought about an find a way to catch the big pressure, by adding "side-supports" for the rollers:

New version of the press with "roller-supports" at the sides.

And now, the Micro"R"Press is perfect for printing:

With the "universal-long-bed" it is possible to print 5 x10 with no problems. So stamps, for exsample. The print-plate, and later, the perforation is made with the same lasercutter, I've used to cut the parts of the press.

In the meantime, I've also made a manual for assambly the parts of the press:

Three pages of the manual in german / english.

 The first "DIY-Kit", just out of the laser has arrieved in Seattle now.

The press is no chidren's toy, but a nice tool, on the desk for making just a print, if you have an idea.

Best materials for the print-plates are photopolymere (clear-stamps), or soft-cut-plates. But with some practice, it is possible to print etchings (intaglio).

Vision and Realisation.





Saturday, 8 May 2021

Thermofaxprint „quick&dirty“ with floating Motives & Material-Print

The Thermofaxprint "quick&dirty" with floating Motives. Size = A6


You know, that artworks often arises during their development process.
In prints, the motive usually is given.
Another point is, using thin things (leafs, feathers,…) in the lay-out of a (screen-, intaglio-)print.

The cheap thermo-copier with 200 dpi solution.

This time I did both: move/exchange the elements after every printing pass and use leafs and and parts of feathers.
For this I used the simple „China-Tattoo-Copier“ and the thermofax-master vom „Gestetner“ (now available from „Ricoh“).
Additional I covered the carrier (240 g/qm paper) with a thin, clear plastic film.
Between carrier and plastic film, I put the items.

The thermofax-master I printed as usually (see here).
For this trial I used the CMYK-colors, show the different levels more simple.
The pur printing-time is very short: for the 4 colors I need less then 2 hours (12 copies).
Between the 2nd. color, the prints needed 2 hours to dry, after the 3rd color I let them dry overnight.

For a quick result, I use the size of a postcard.
The „China-Tattoo-Copier“ is limited to the size of A4, but you can use this size (or a smaller one) as pattern for printing on bigger formats, or fabric (for example with T-Shirt-Colors). Similar to the traditional thermofax-print,.

The carrier with the covering plastic film.

The items for the yellow-print. Black paper, feathers.


Yellow printing with thermofax-master from "Gestetner" / "Ricoh"

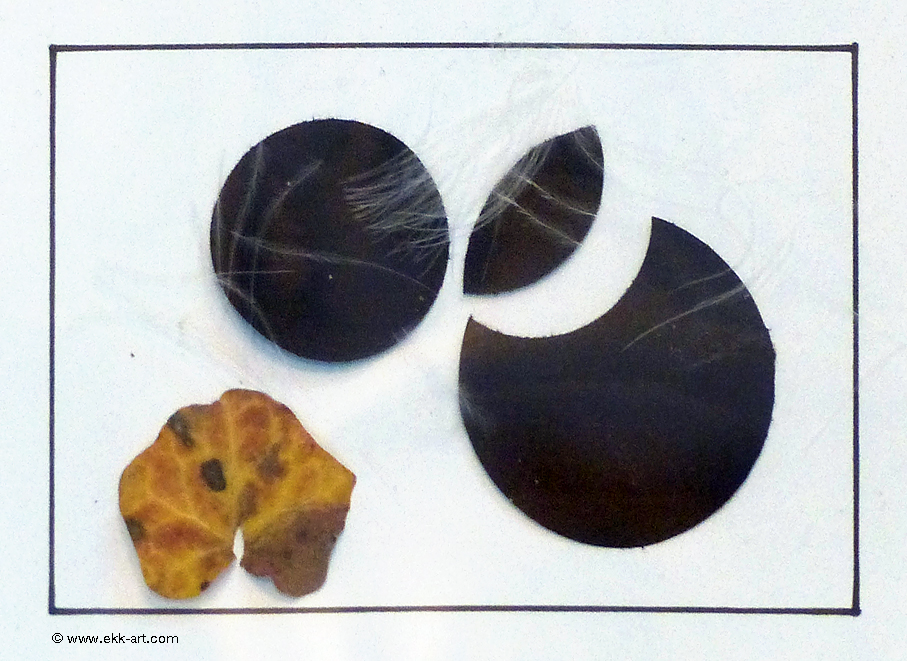

The items for the magenta-print. Paper + leaf.

The items for the cyan-print. Paper + parts of feathers.

The leaf for the black-print.


Printed card in the stand.
Have a good print and stay healthy
-ekk-
